Wedge Wire Screen

Wedge Wire Screens are precision-engineered screening elements manufactured from profile wire welded to support rods. The unique V-shaped profile creates a continuous slot opening that provides excellent screening efficiency, high mechanical strength and resistance to blinding.

They are widely used for liquid-solid separation, water filtration, process filtration, dewatering and particle separation across industrial applications.

Key Features

Continuous V-shaped slot opening for efficient screening
High mechanical strength and rigidity
Excellent resistance to clogging and blinding
Easy to clean by backwashing, brushing or high-pressure water
Accurate and consistent slot openings
Available in stainless steel and other alloys
Suitable for high-flow applications
Custom-designed dimensions and configurations
Available as flat panels, cylinders, baskets, laterals and other shapes

Typical Materials

SS304 / SS304L
SS316 / SS316L
Duplex stainless steel
Super duplex stainless steel
Nickel alloys
Other materials available upon request

Typical Applications

Wedge Wire Screens are commonly used in:

Water intake and water treatment
Wastewater treatment
Cooling tower filtration
Rotary drum screens
Well screens
Sand and gravel separation
Dewatering equipment
Food and beverage processing
Chemical processing
Petrochemical applications
Pulp and paper industries
Mineral processing
Industrial process filtration

Wedge Wire Screen Construction

A wedge wire screen consists of:

Profile Wire + Support Rods + Precisely Controlled Slot Opening

The profile wire is normally triangular or V-shaped. The screen is manufactured by resistance welding the profile wires to support rods, producing a strong and rigid screening structure.

The V-shaped slot allows particles to be retained while allowing the fluid to pass through with relatively low resistance.

Available Configurations

We can supply wedge wire screens in various configurations, including:

Type	Typical Application

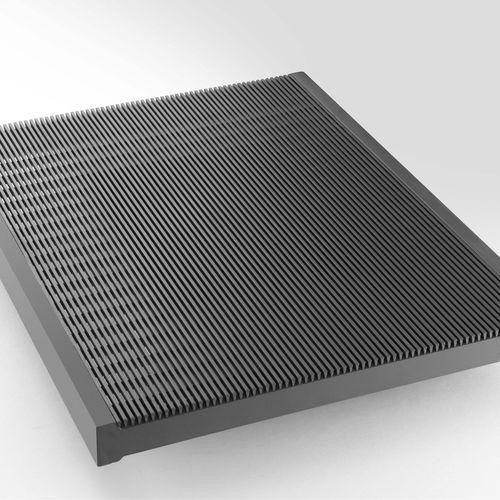

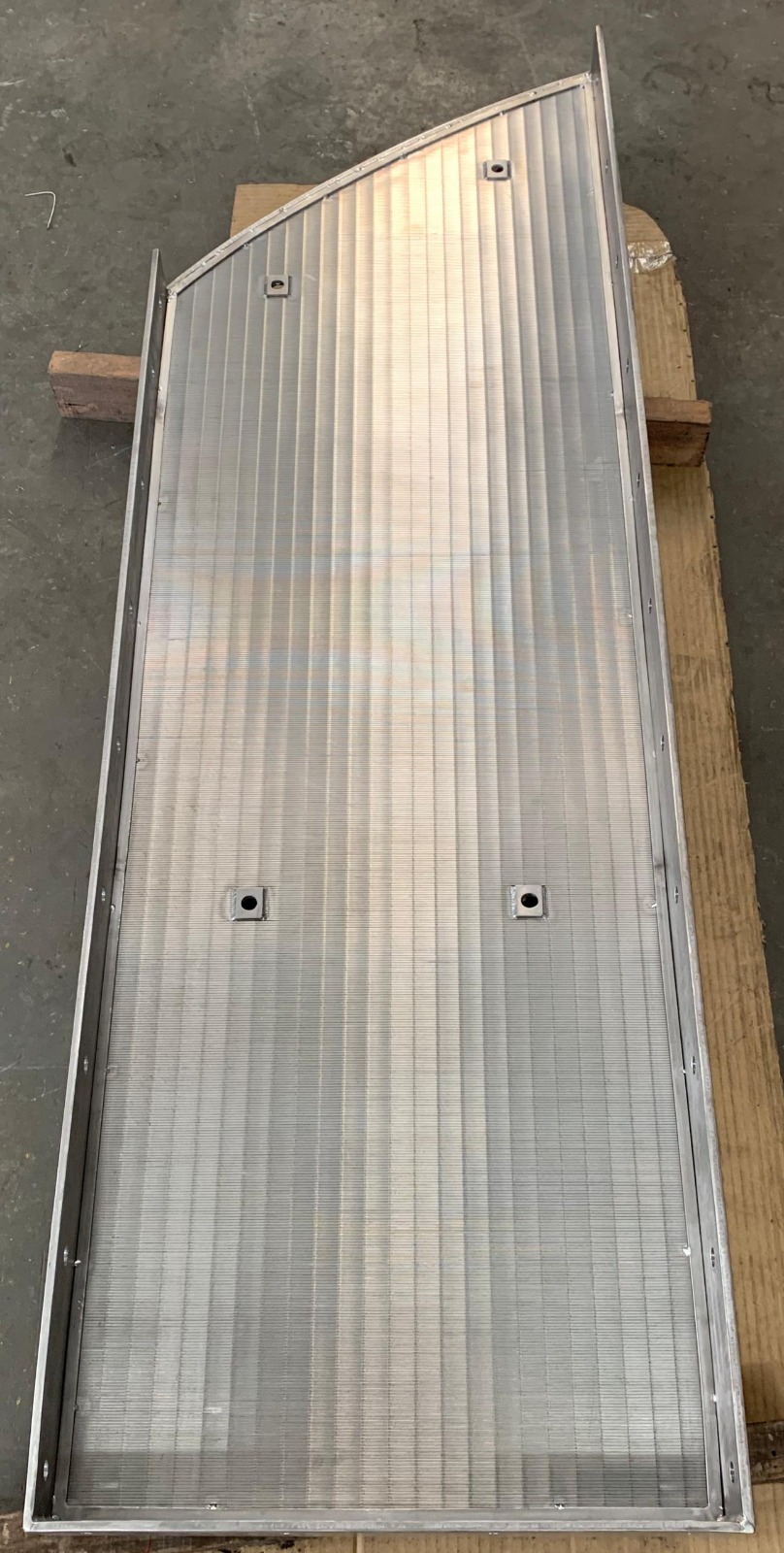

Flat Screen Panel	Water and industrial filtration

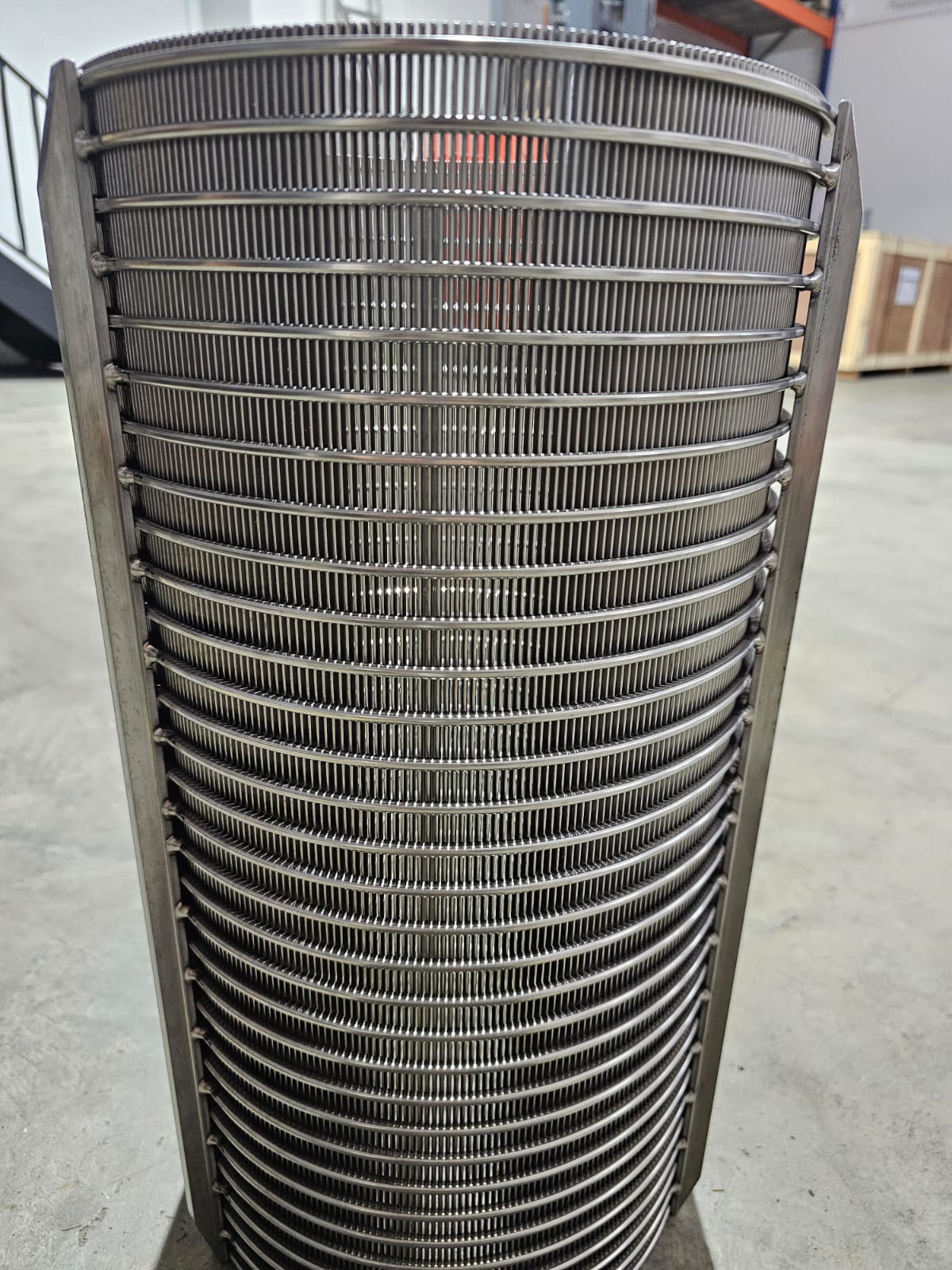

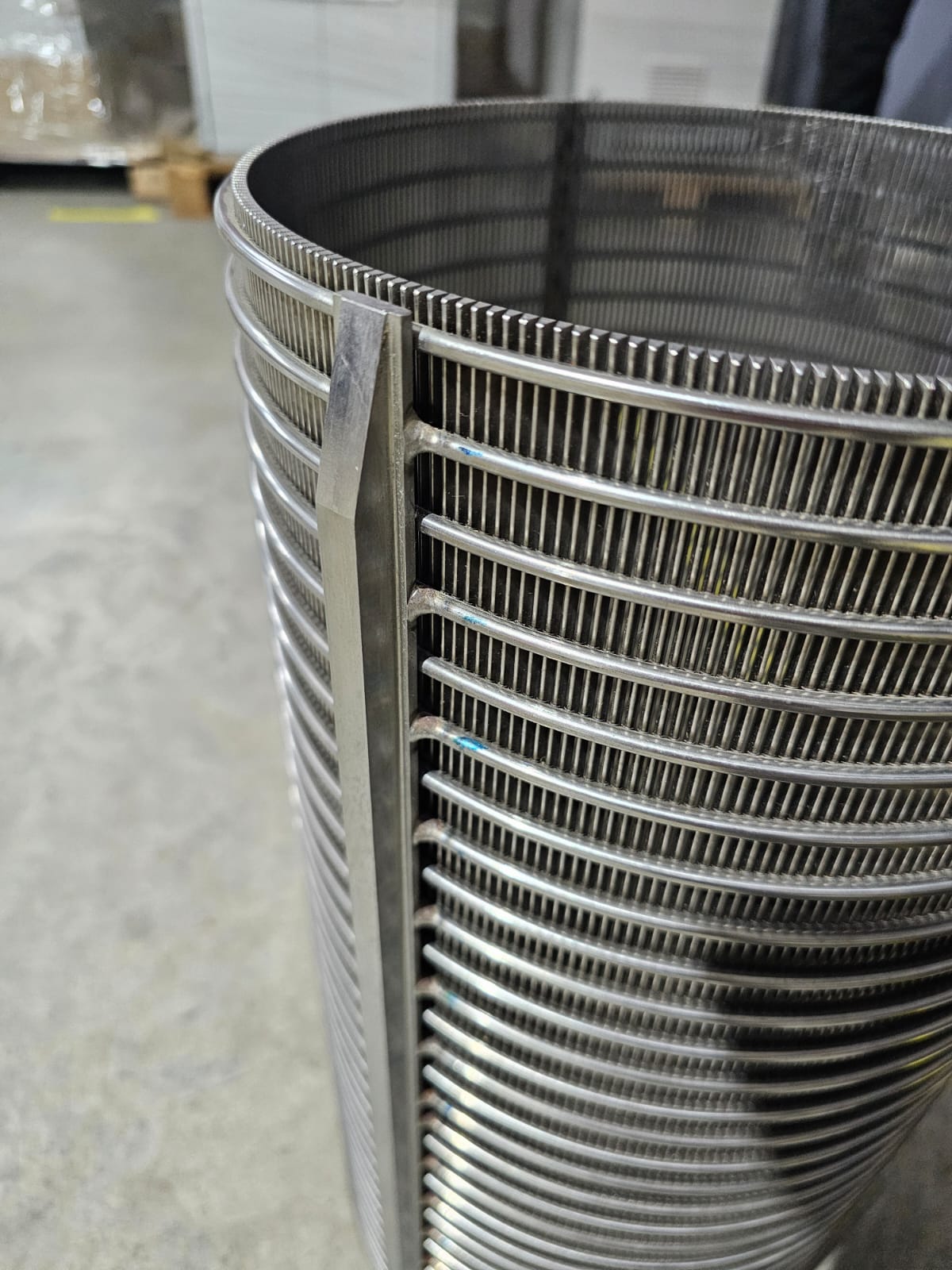

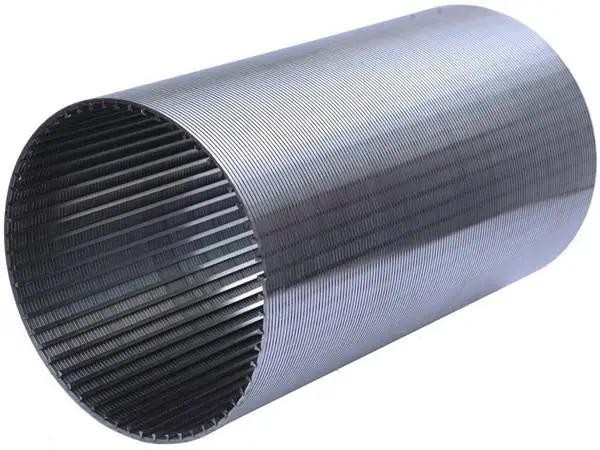

Cylindrical Screen	Well screens, process filtration
Basket Screen	Strainers and filtration vessels
Johnson Screen	Water wells and process applications
Rotary Drum Screen	Wastewater and solids separation
Laterals	Vessel and media filtration

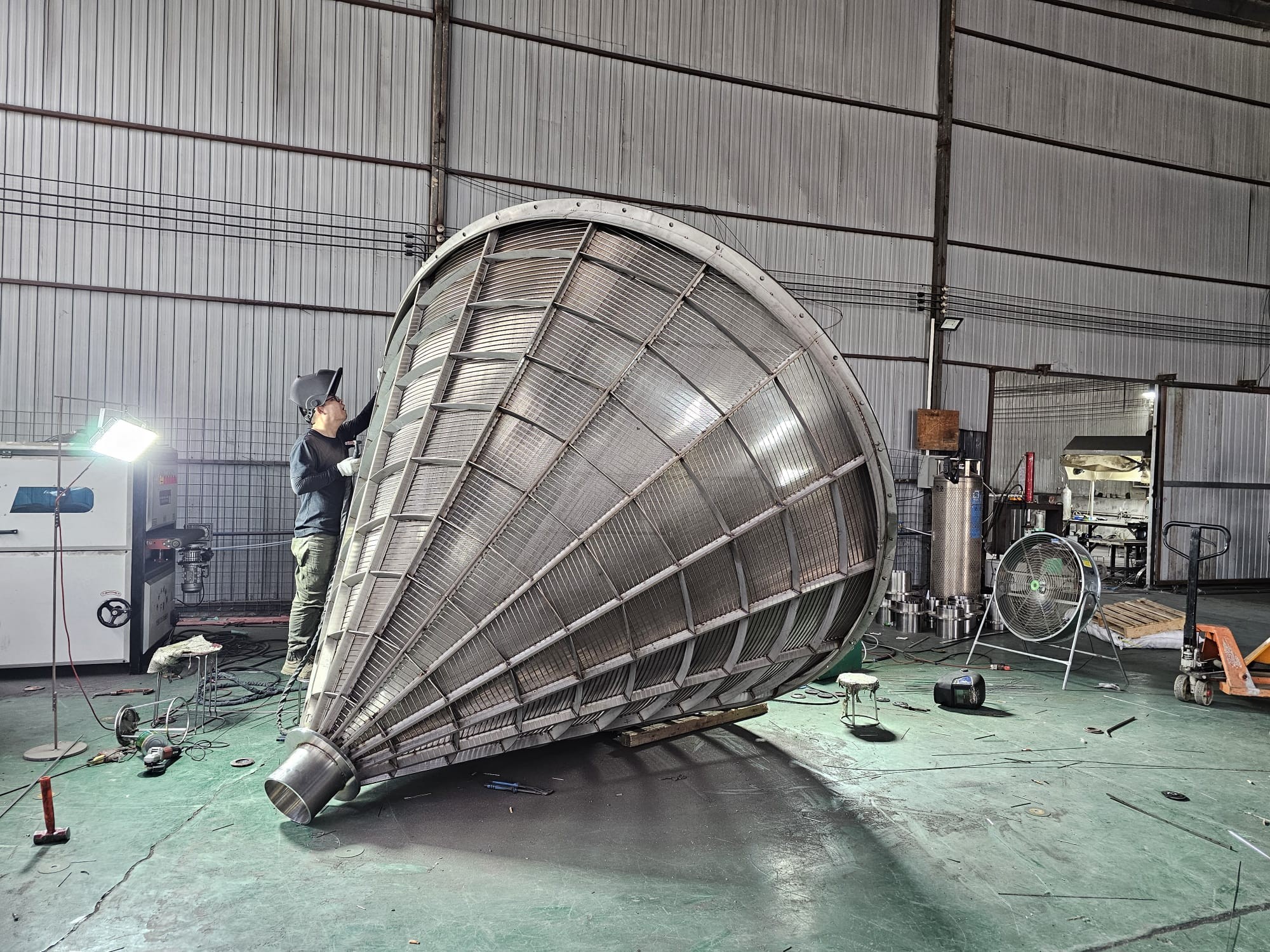

Conical Screen	Specialized screening applications

Custom Slot Opening

Slot openings can be selected according to the required particle retention and flow rate.

Typical slot openings include:

0.10 mm | 0.15 mm | 0.20 mm | 0.25 mm | 0.30 mm | 0.50 mm | 1.0 mm and above

Other slot sizes can be manufactured according to customer requirements.

Why Choose Wedge Wire?

The continuous slot design provides several advantages compared with conventional perforated plates or woven screens:

Higher Open Area
Provides efficient fluid flow and lower pressure loss.
Self-Cleaning Effect
The V-shaped slot profile reduces the tendency of particles to become trapped within the opening.
High Strength
Welded construction provides excellent mechanical stability.
Long Service Life
Stainless steel construction offers good resistance to corrosion and wear.
Easy Maintenance
The screen can be cleaned using backwashing, air scour, water jetting or mechanical cleaning.
