Random Packing

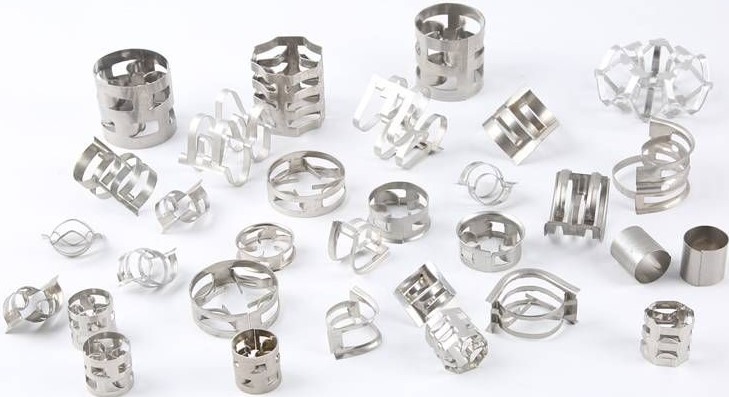

Random Packing has many applications and it been widely used in many sector of industries. As an example, it is used in the chemical, metallurgy, coal gas, environmental protection industries for gas and liquid separations in dying towers, absorption towers, cooling towers, washing towers and regeneration towers. There are some main types of random packing stated below that can be referred to find the best and suitable one that you need.
Raschig Ring

Raschig Ring is the simplest structure of all types of random packing. They are a cylindrical tube which usually have an equal height and diameter. Raschig Rings are very effective at the base of a boiling vessel to distribute the heat evenly.
Normal Size mm | 10 | 13 | 16 | 19 | 25 | 32 | 38 | 50 | 75 |
Void Fraction % | 83 | 84 | 86 | 87 | 88 | 89 | 90 | 92 | 95 |
Pall Ring

Pall Ring is the improved products of Raschig Ring. The features of Pall Ring is the diameter size is same as the height just like the Raschig Ring. Besides, there are two layers of window on the cylinder wall. And each wall have five ligules bending inward.
The openings on the cylinder wall let the Pall Ring make full use of the inner surface and improve the separating and absorbing efficiency. The flux of Pall Ring improves 50% than the Raschig Ring but the pressure drop reduce half.
Normal Size mm | 16 | 25 | 38 | 50 | 90 |
Void Fraction % | 93 | 96 | 97 | 98 | 98 |
CMR Ring

The CMR Ring is the advanced product of Pall Ring. The height and diameter of the CMR Ring are measured at a ratio of 1: 2, and cone-shaped flange is added onto the end of the CMR Ring. It can improve the mechanical strength as well as reduce the gas passing resistance and increase the flux. In addition, the liquid and gas has uniform distribution and then the separating efficiency is improves through increasing the contact area.
Normal Size mm | 25 | 38 | 44 | 50 | 63 | 90 | 125 |
Void Fraction % | 97 | 97 | 97 | 97 | 97 | 98 | 98 |
Intalox Ring

Intalox Ring has the shape that is similar to the saddle, however, its shapes is between the ring and saddle.
It can be benefit for the liquid distribution and it can also improve the flux of gas. Intalox Ring has larger flux, less resistance and higher efficiency. Moreover, it has high rigid and mechanical strength, it is the most widely used type among all the random packing.
Normal Size mm | 15 | 25 | 40 | 50 | 60 | 70 |
Void Fraction % | 93 | 96 | 97 | 98 | 98 | 98 |
