LEAKPROOF Y-Strainers
LEAKPROOF Y-Strainers are designed and suitable for light industrial and fluid processing applications where the line can be interrupted or temporarily shut down for cleaning or element replacement. The Y-Strainer is design for easy access and heavy duty with precision machined to give a tight seal and prevent any leakage or by-passing article in the filter. A custom design is also available to meet your special needs. So do not hesitate to contact our sales representative for any inquiry.
LP150Y2
Part Name | Material |
---|---|
Body | CI / C.S / SS CF8 |
Gasket / O-Ring | EPDM / Viton |
Basket | 1/32″ , 1/16″ or 1/18″ Perforation |
Mesh | #20/30/40/60 |
Cast Type Y-Strainer
- Flange-End connections
- Compact, light weight housing
- Simple and easy installation
- Heavy duty basket design for long lifespan
- Threaded drain
- Perforated Stainless Basket with replaceable filter mesh

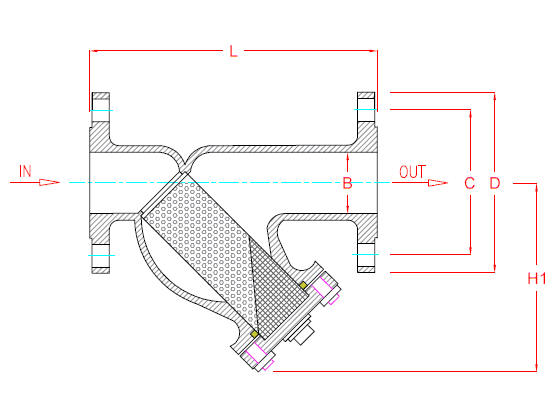

Dimensional Data

Normal Size | L | D | C | B | H1 | Drain Size (BSPT) | Est. Weight (kg) |
---|---|---|---|---|---|---|---|
1″ | 160 | 108 | 79 | 25 | 77 | Nil | 3.4 |
2″ | 220 | 152 | 120 | 50 | 128 | 1/2″ | 9.0 |
3″ | 290 | 190 | 152 | 80 | 200 | 1/2″ | 18.5 |
4″ | 350 | 229 | 190 | 100 | 240 | 1/2″ | 27.0 |
6″ | 440 | 279 | 241 | 150 | 300 | 1/2″ | 50.0 |
8″ | 540 | 343 | 298 | 200 | 410 | 1/2″ | 100.0 |
10″ | 640 | 406 | 362 | 250 | 475 | 1/2″ | 147.0 |
12″ | 805 | 484 | 432 | 300 | 600 | 1/2″ | 216.0 |
Fabricated Type Y-Strainer
- Butt Weld connections
- Compact, light weight housing
- Simple and easy installation
- Heavy duty basket design for long lifespan
- Threaded drain
- Perforated Stainless Basket with replaceable filter mesh

Our showcase

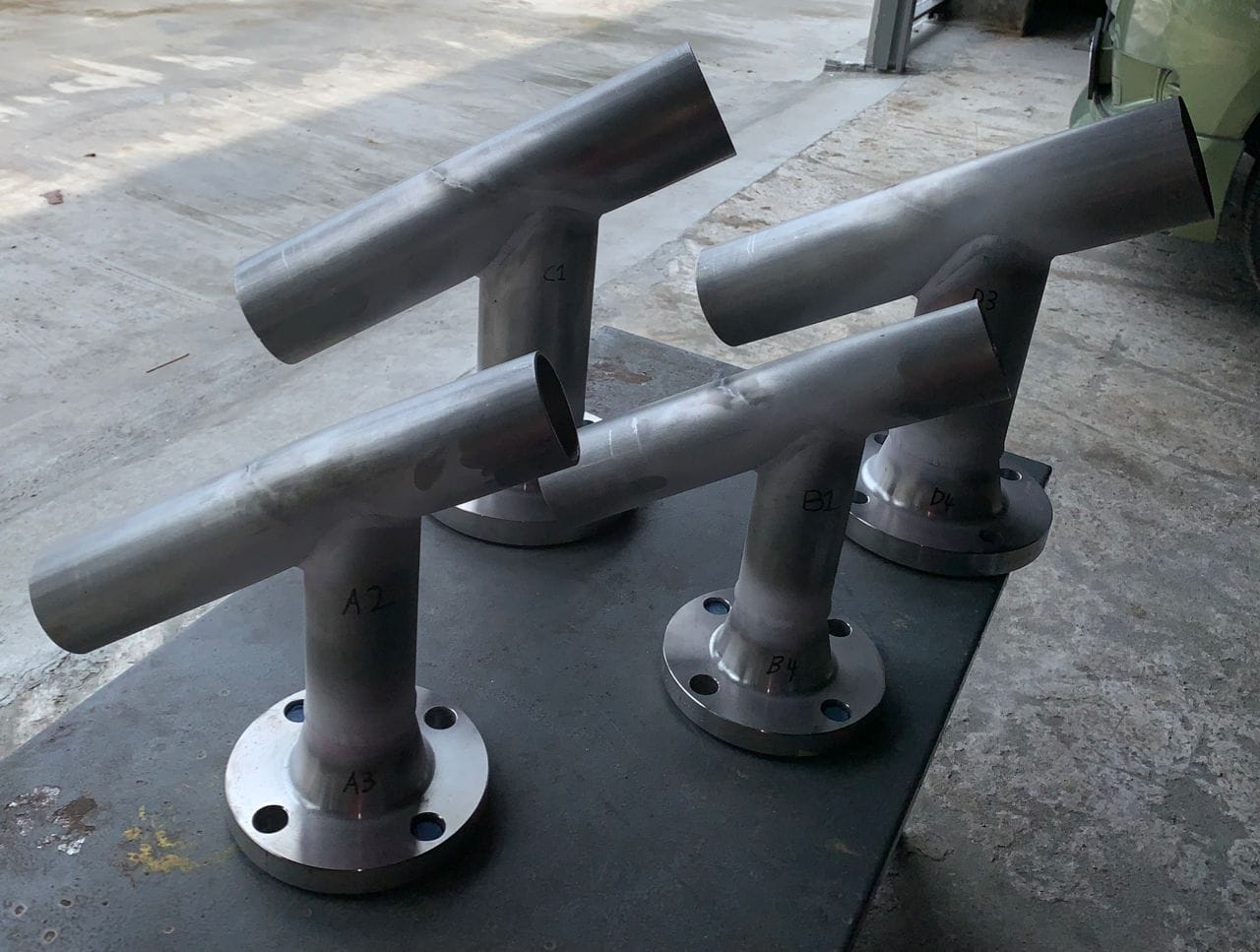

Butt weld y-strainer

butt weld y-strainer

Butt weld y-straienr

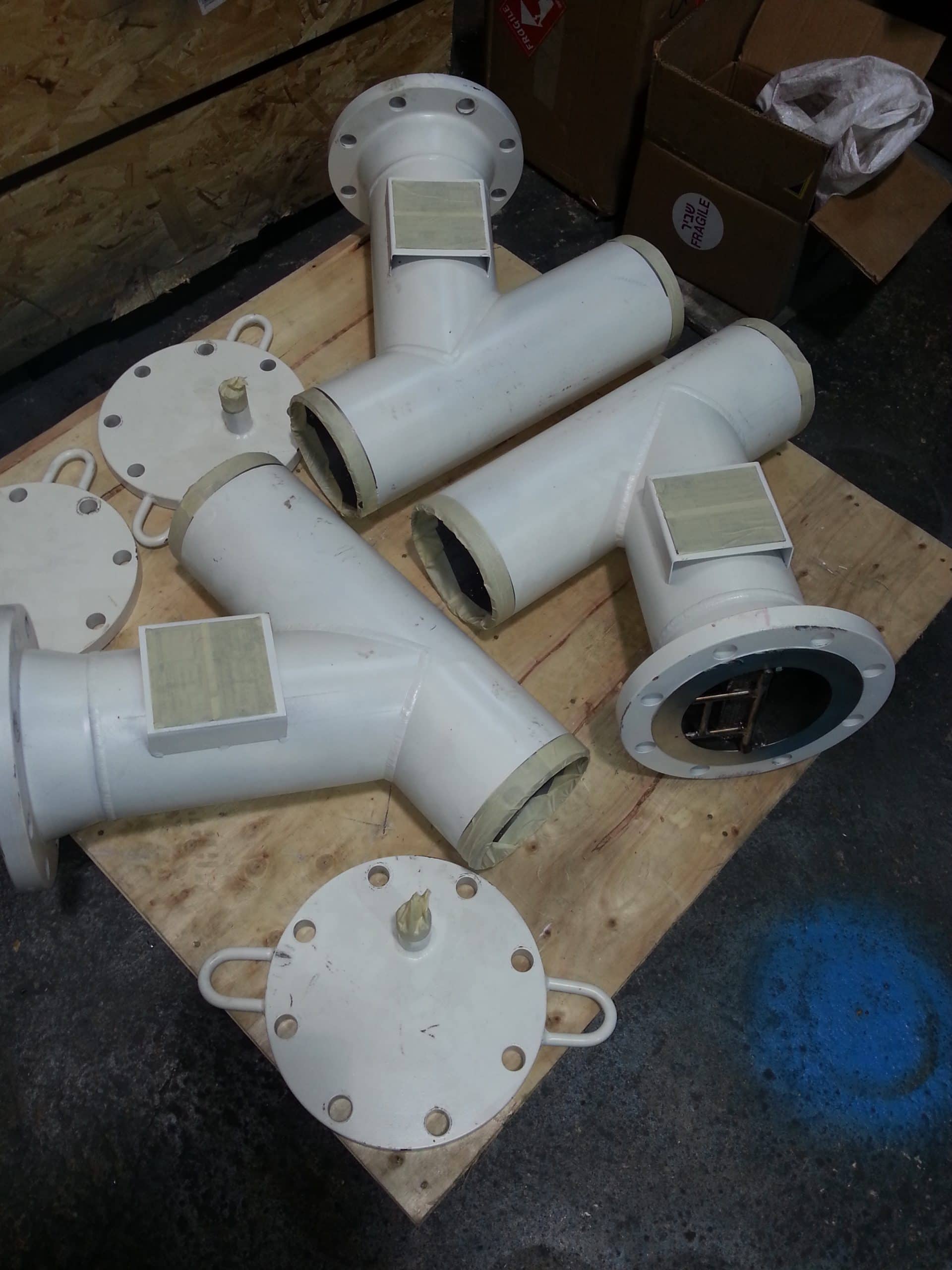

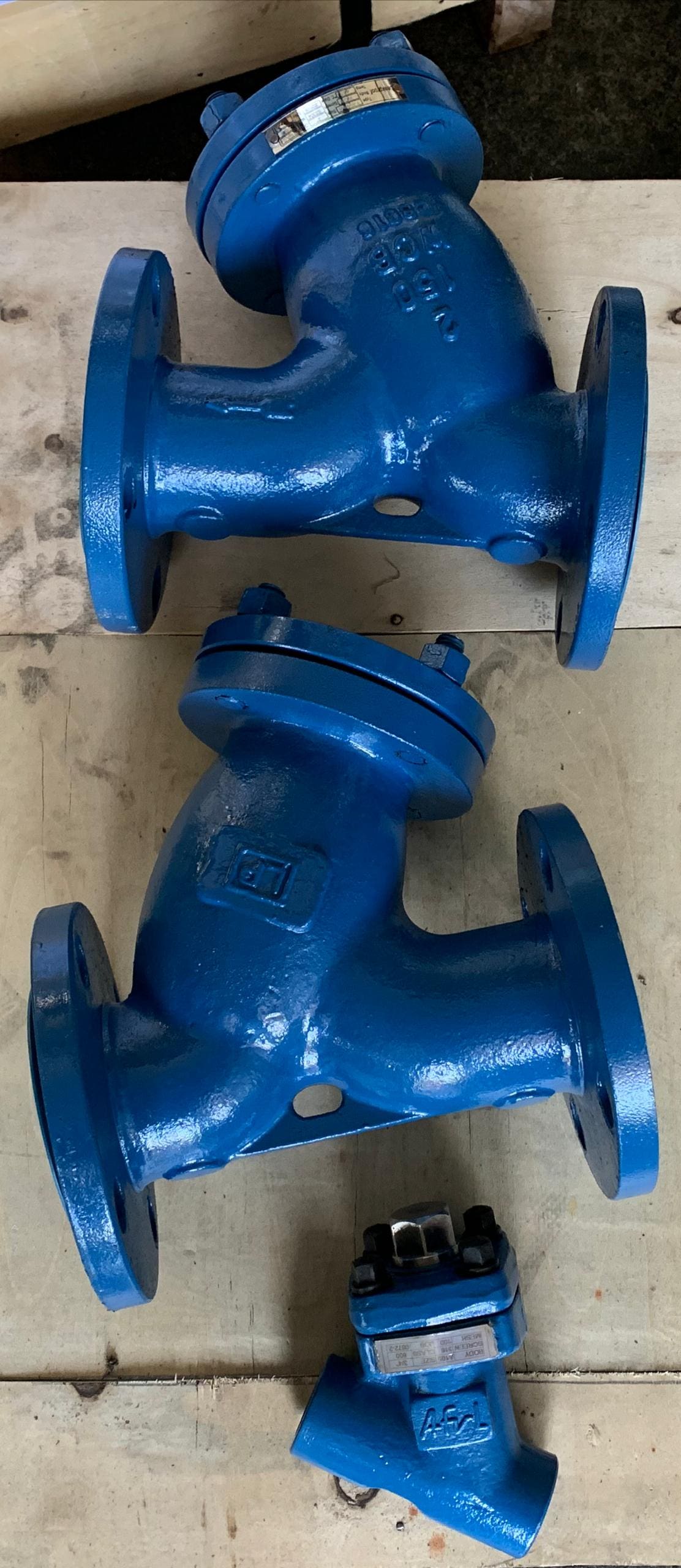

cast type y-strainer

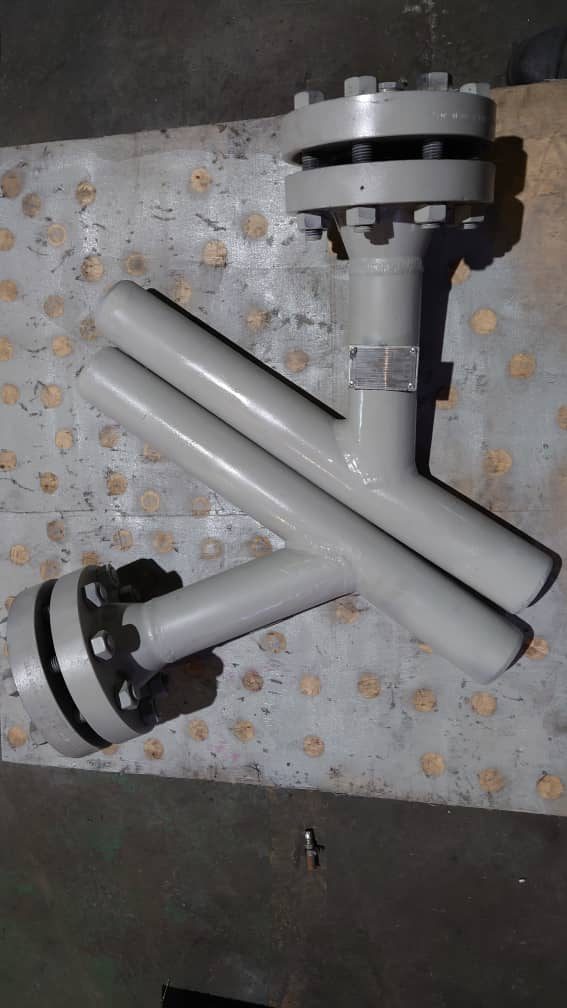

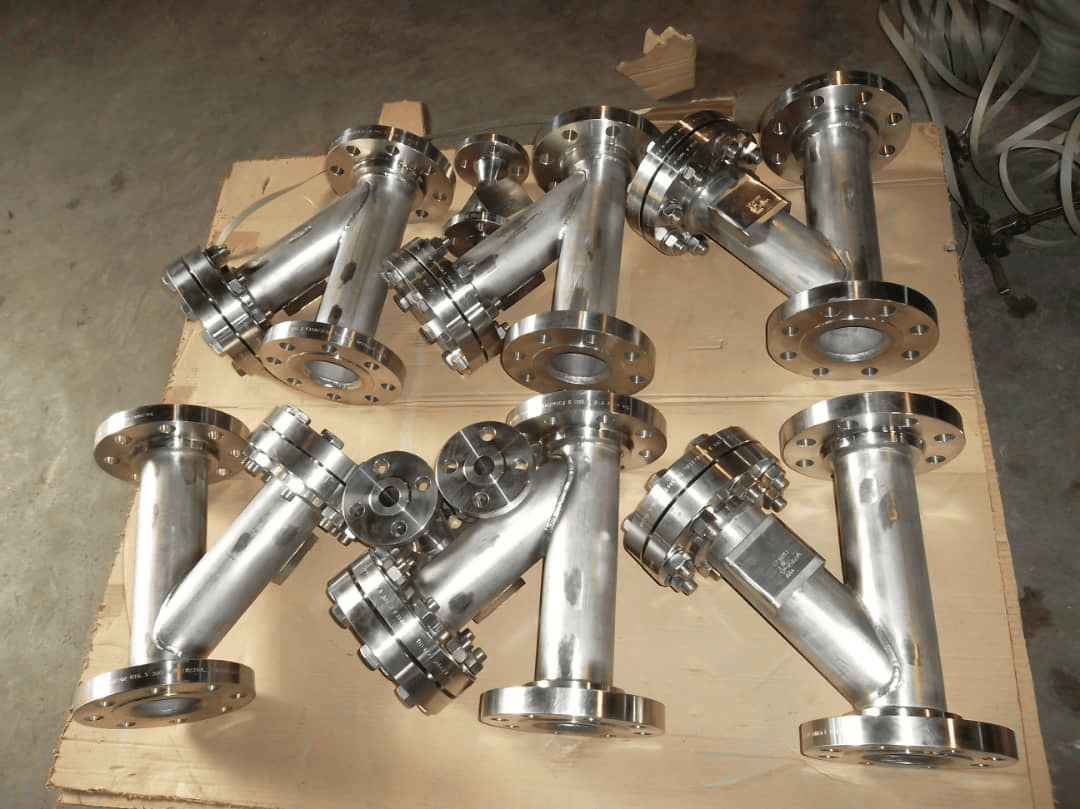

fabricated flanged end y-straienr

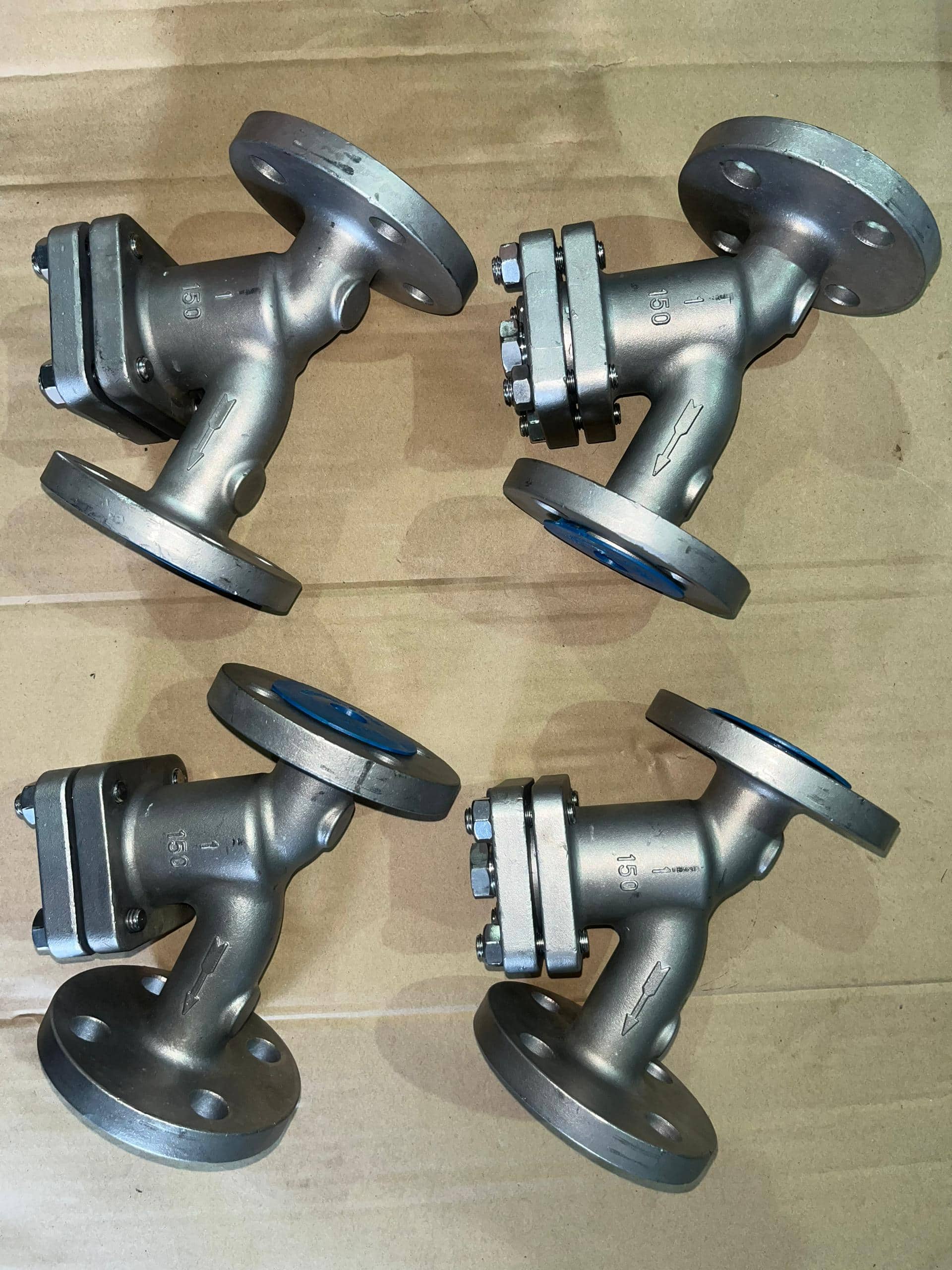

Cast type flanged end y-strainer

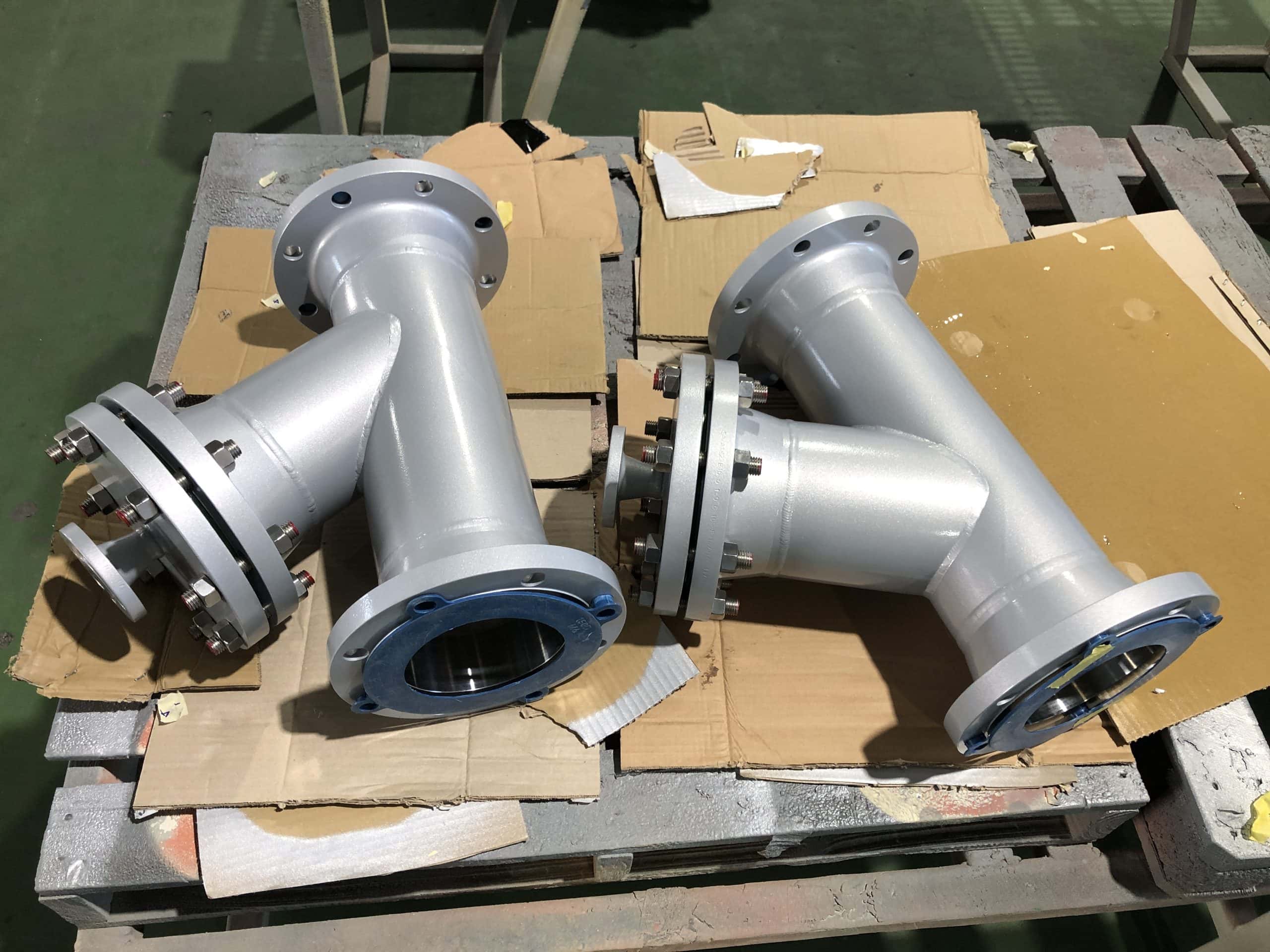

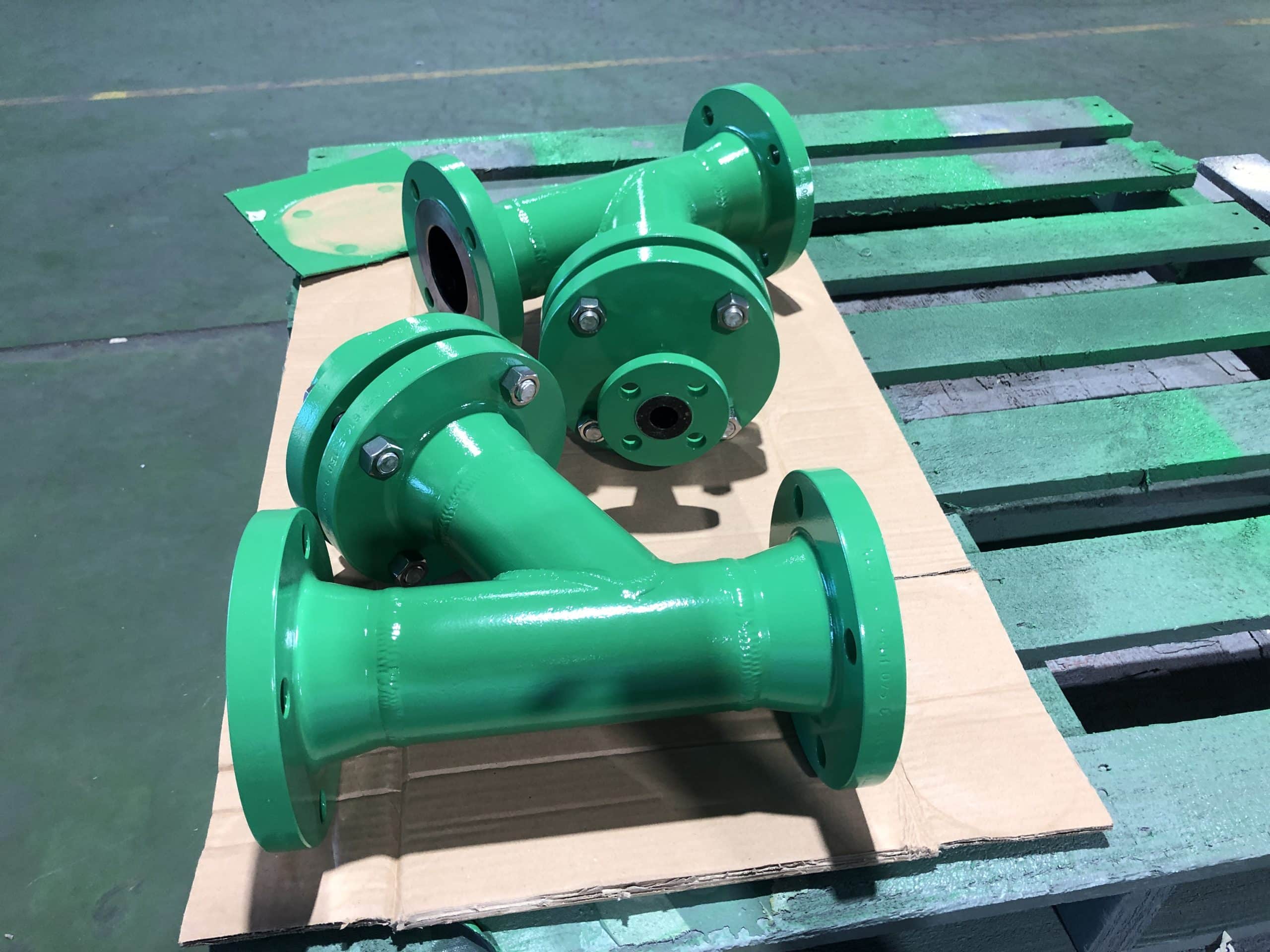

after painting

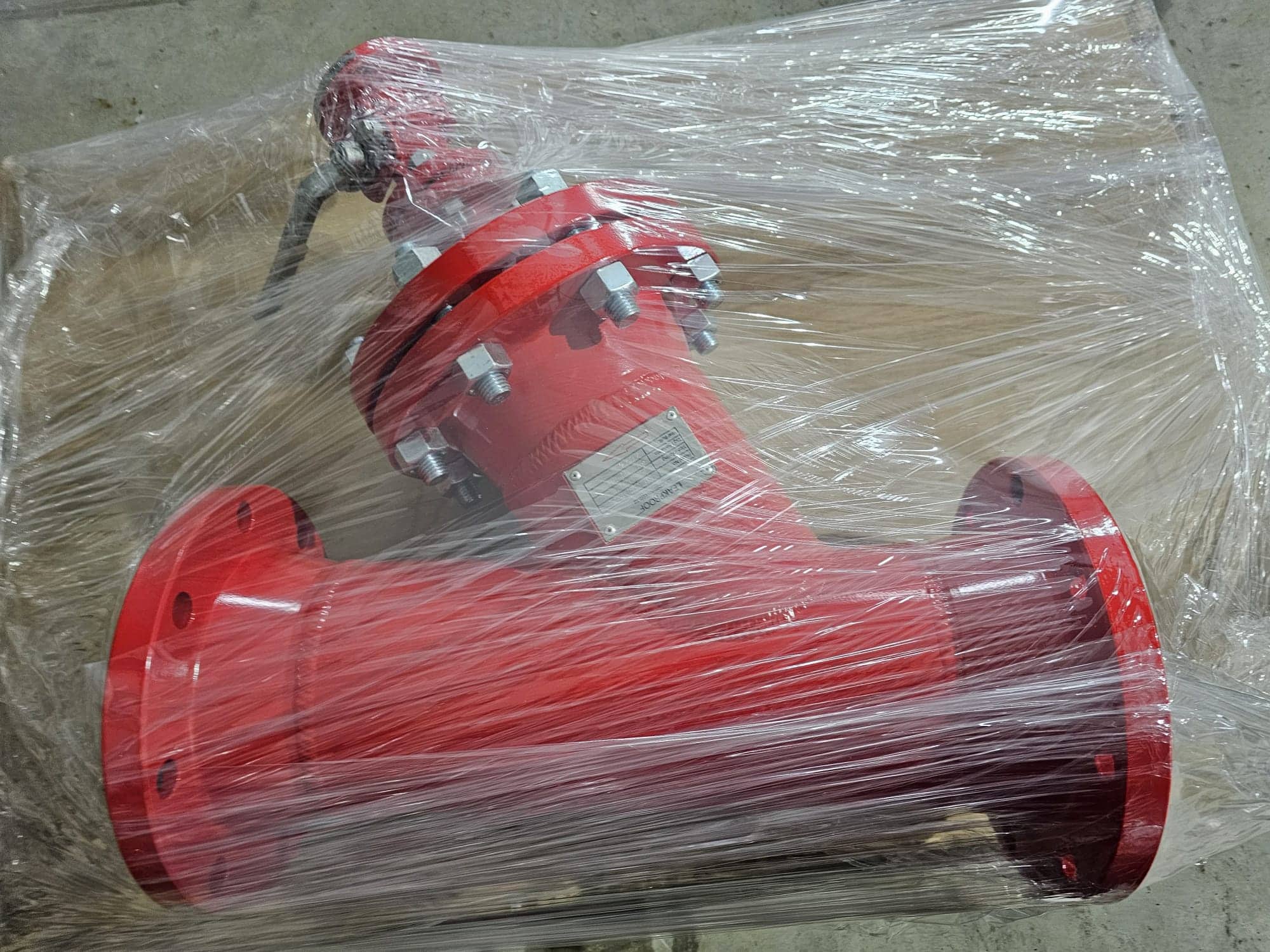

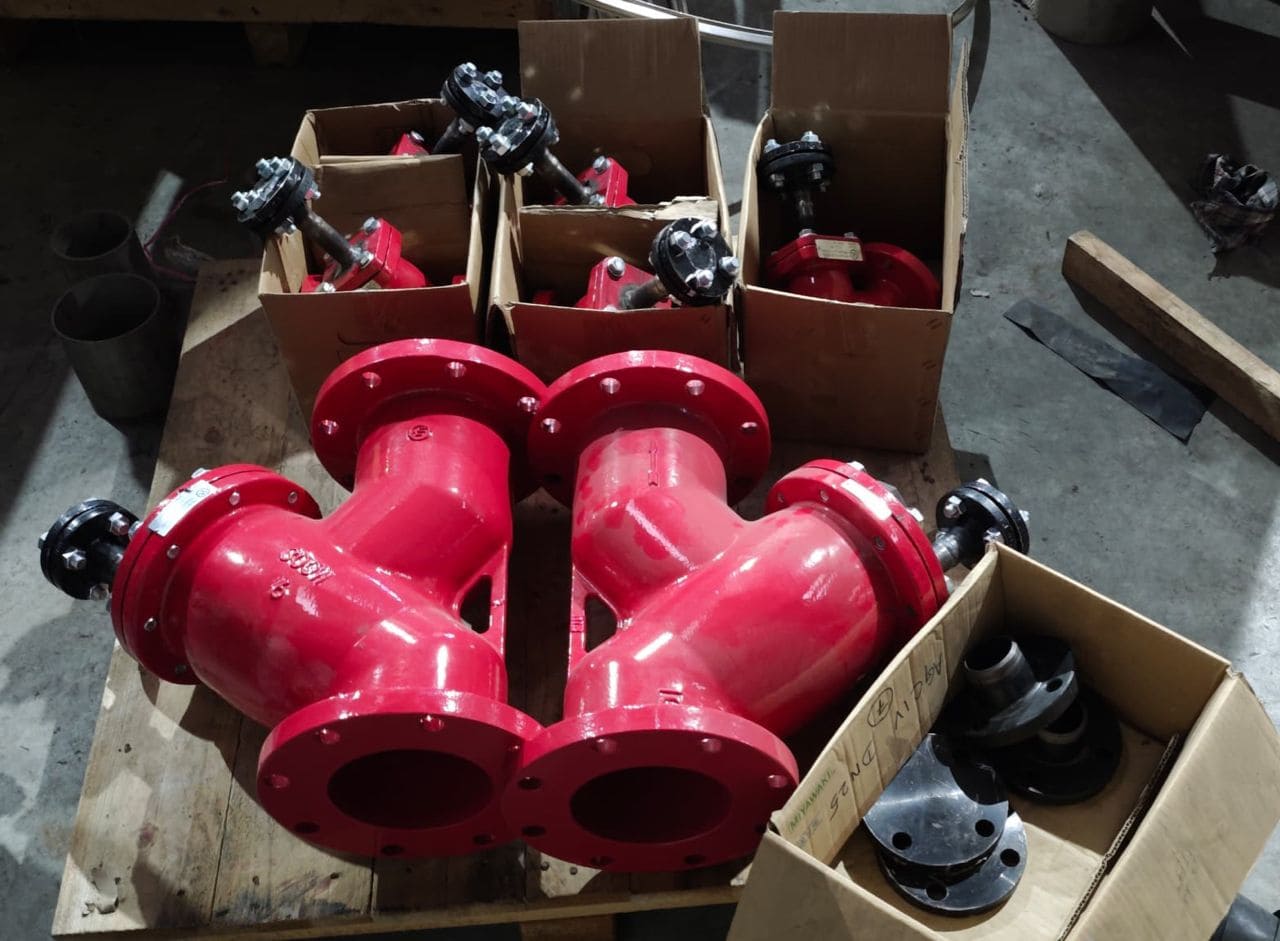

before dispatch

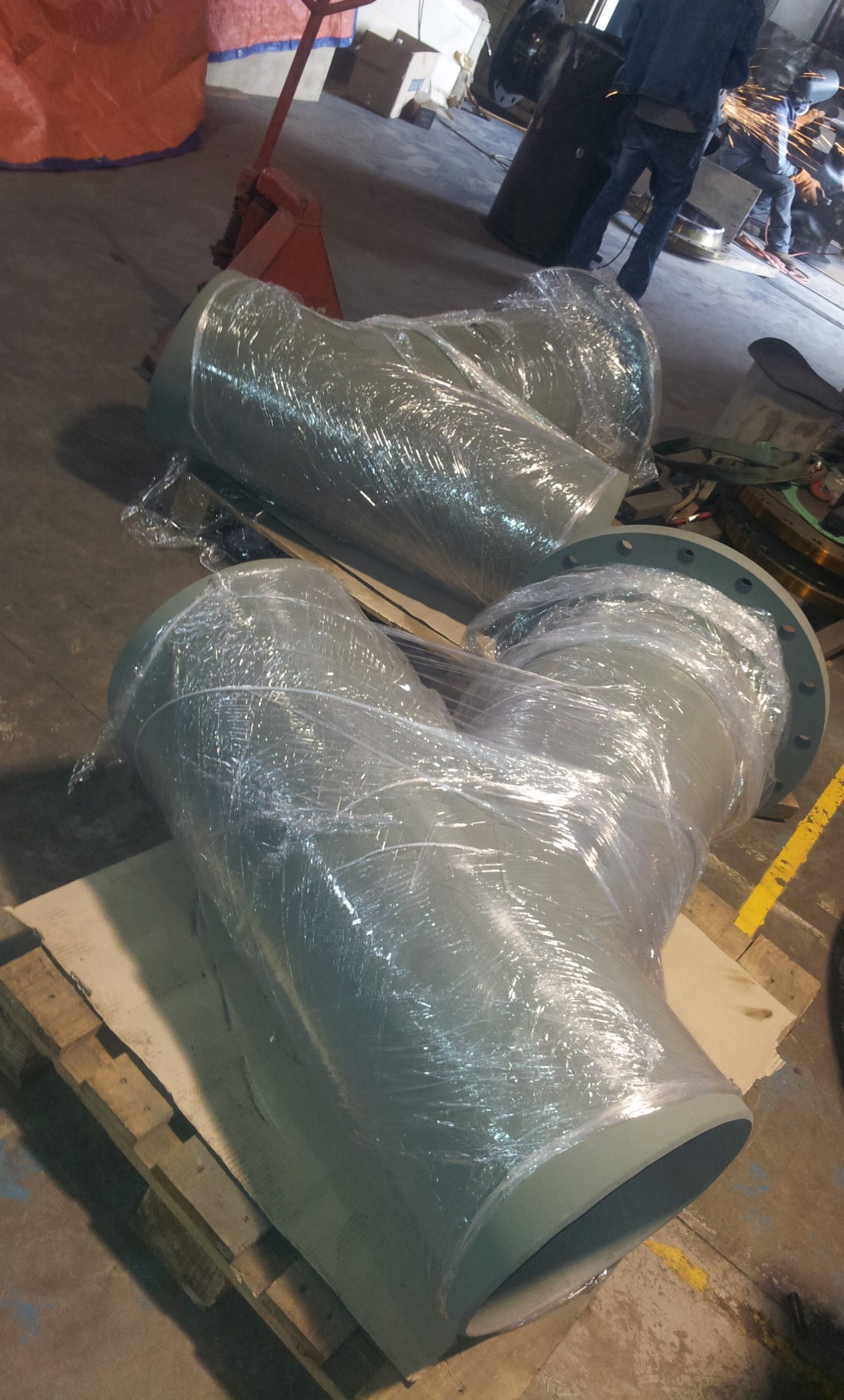

Before dispatch

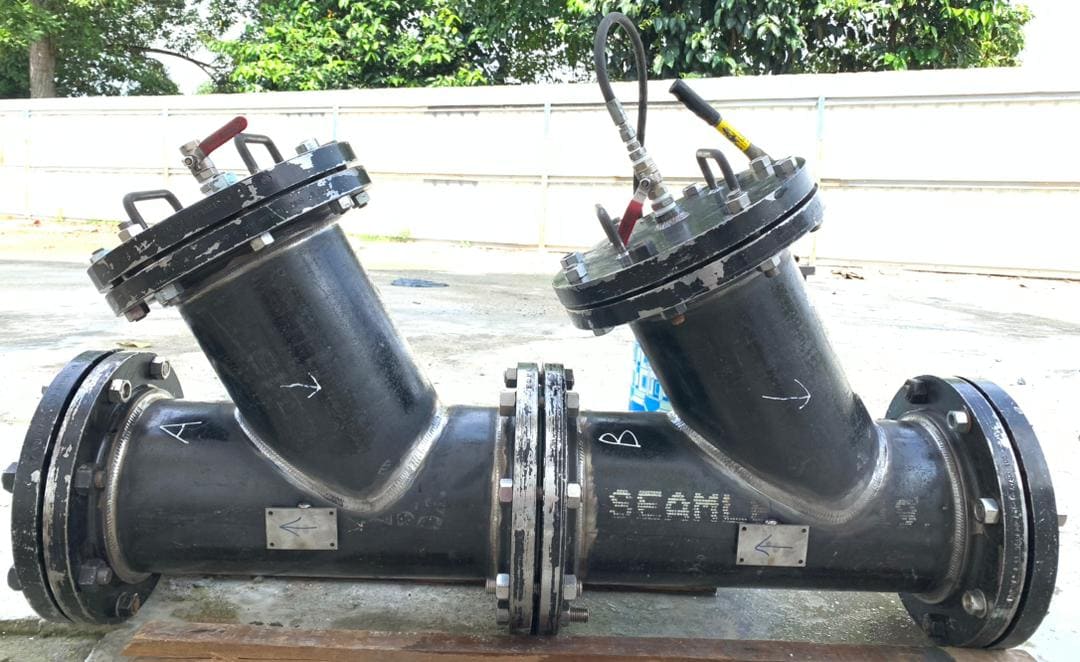

hydro test
